Are you looking for a seamless way to export connections from Autodesk® Revit® to IDEA StatiCa without the need for an IDEA StatiCa license? Look no further than the IDEA StatiCa Viewer plugin! This free plugin allows you to easily export connections to the cloud Viewer, enabling you to collaborate with colleagues and structural engineers efficiently. Let's delve into the features and benefits of this plugin.

Features Overview

The IDEA StatiCa Viewer for Autodesk® Revit® offers a range of features that make connection exporting and collaboration a breeze. With support for several design codes such as EN, AISC-LRFD, AISC-ASD, CISC, AS, SP, GB, IS, HKG, you can export connections with ease. The two-step export process and cloud-based solution streamline the workflow, while the powerful Viewer allows you to visualize connections in 3D and export them to a 3D DWG file or .ideacon file.

Install wizard
Install wizard

(Image by: IDEA StatiCa)

How It Works

After installing the plugin, you will find a new button in the Revit ribbon labeled "IDEA StatiCa – Export to Viewer." Simply select the desired standard, and you can export any connection to the IDEA StatiCa Viewer on the cloud. This free service enables you to display connections from IDEA StatiCa and export them to various file formats without the need for an IDEA StatiCa license. It's a convenient and efficient way to collaborate with your team and structural engineers.

The first time you use the Viewer plugin, the application asks for a sign-in.
The first time you use the Viewer plugin, the application asks for a sign-in.

(Image by: IDEA StatiCa)

Benefits of Using the Plugin

The IDEA StatiCa Viewer plugin for Autodesk® Revit® is a valuable tool for architects, engineers, and detailers who need to export connections for analysis and collaboration. With its user-friendly interface, support for multiple design codes, and cloud-based solution, this plugin simplifies the process of exporting connections and sharing them with colleagues. Whether you need to export a connection to a 3D DWG file or .ideacon file, this plugin has you covered.

Use your credentials for your IDEA StatiCa license or sign up for a trial and they will be sent to you.
Use your credentials for your IDEA StatiCa license or sign up for a trial and they will be sent to you.

(Image by: IDEA StatiCa)

Conclusion

The IDEA StatiCa Viewer for Autodesk® Revit® is a must-have plugin for anyone working with connections in their Revit projects. With its seamless integration, support for various design codes, and cloud-based solution, this plugin simplifies the process of exporting connections and collaborating with colleagues and structural engineers. Best of all, it's free to use, making it accessible to everyone in the industry. Try the IDEA StatiCa Viewer plugin today and experience the ease of exporting connections from Revit to IDEA StatiCa without the need for a license.

You will now see a new IDEA StatiCa tab in the top ribbon.
You will now see a new IDEA StatiCa tab in the top ribbon.

(Image by: IDEA StatiCa)

Now, you can select the national standard you want to use.
Now, you can select the national standard you want to use.

(Image by: IDEA StatiCa)

Select between Bulk and One selection. For the One option, follow the instructions from the command line in Revit:
Select between Bulk and One selection. For the One option, follow the instructions from the command line in Revit:

(Image by: IDEA StatiCa)

Select all the parts of the connection. Confirm with the Finish button.
Select all the parts of the connection. Confirm with the Finish button.

(Image by: IDEA StatiCa)

The Bulk selection works as follows:
The Bulk selection works as follows:

(Image by: IDEA StatiCa)

Press Bulk and select the corresponding connections in Revit. Confirm the selection with Finish button.
Press Bulk and select the corresponding connections in Revit. Confirm the selection with Finish button.

(Image by: IDEA StatiCa)

IDEA StatiCa offers the export of additional recommended welds.
IDEA StatiCa offers the export of additional recommended welds.

(Image by: IDEA StatiCa)

If the material is not recognized, IDEA StatiCa displays the conversion table.
If the material is not recognized, IDEA StatiCa displays the conversion table.

(Image by: IDEA StatiCa)

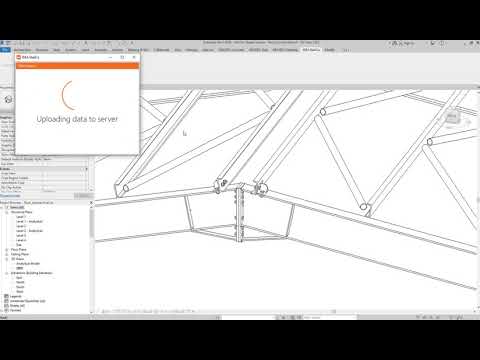

The wizard starts communicating with the server.
The wizard starts communicating with the server.

(Image by: IDEA StatiCa)

Now, you can select several actions, both for a single connection (Current item) or all items from the list.
Now, you can select several actions, both for a single connection (Current item) or all items from the list.

(Image by: IDEA StatiCa)

Other actions can be taken in the Viewer app.
Other actions can be taken in the Viewer app.

(Image by: IDEA StatiCa)

Apex exported connection in Viewer cloud application, end plate drawing.
Apex exported connection in Viewer cloud application, end plate drawing.

(Image by: IDEA StatiCa)
