Introduction

Revit users looking to streamline their 3D section box workflow should consider Section Box Pro, a powerful plugin that takes this native Revit feature to the next level. With a focus on high-speed detailing, clash inspection, and multi-element documentation, Section Box Pro offers a range of advanced features to enhance productivity and efficiency.

Key Features

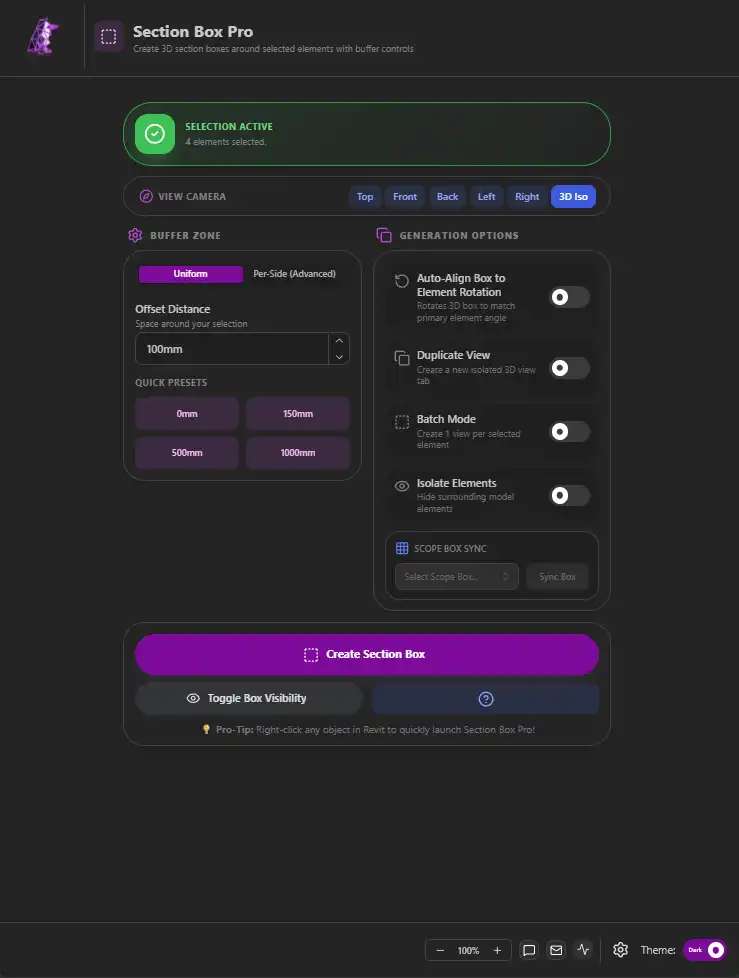

Section Box Pro offers a range of key features that set it apart from the standard Revit section box tool. One standout feature is the ability to create instant 3D views with multi-directional buffer control. Users can fine-tune offset distances for top, bottom, left, right, front, and back directions in millimeters, allowing for precise customization of section box dimensions.

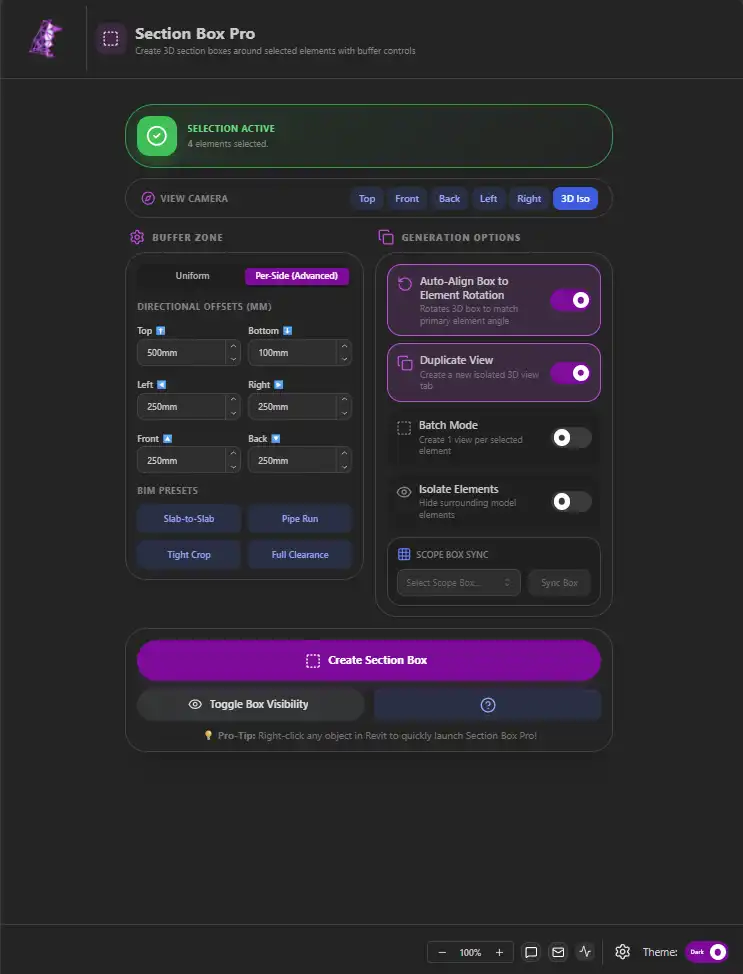

Another useful feature is the inclusion of asymmetric buffers, which enable users to adjust offset distances individually for each direction. This level of control allows for greater flexibility when isolating specific elements within a model.

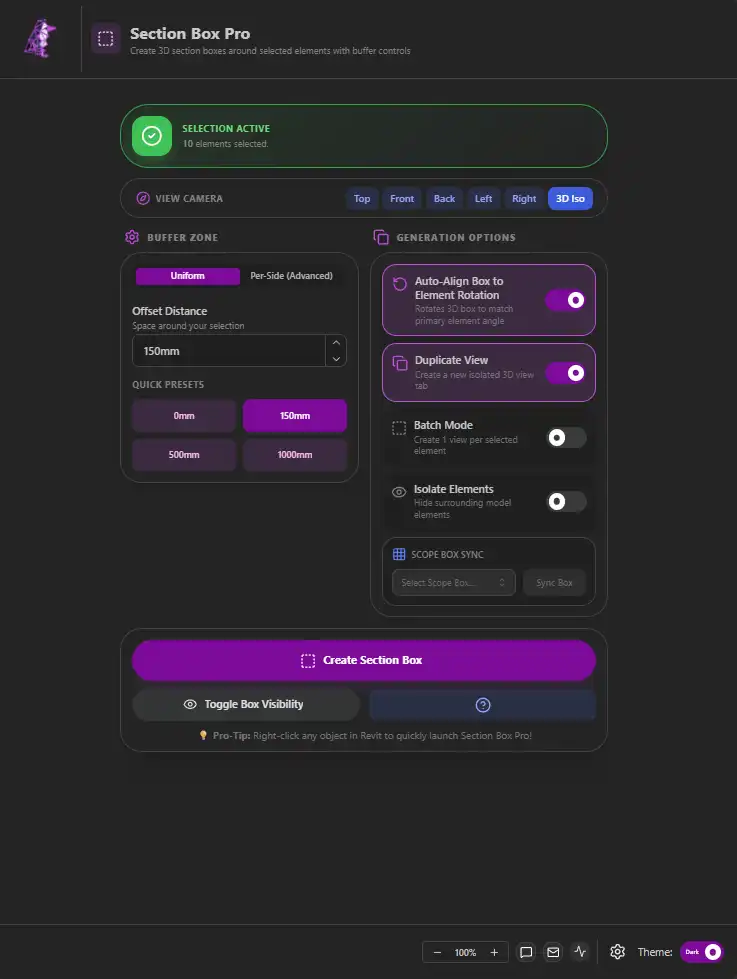

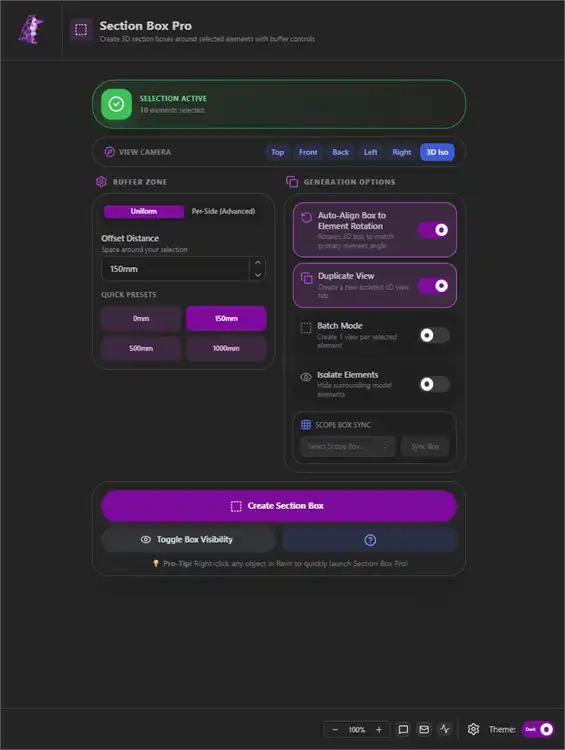

Section Box Pro also includes instant presets, such as Tight (150mm), Context (500mm), and Clash (0mm) buffer presets. These presets allow users to quickly switch between different buffer settings to suit their specific needs, saving time and streamlining the workflow.

Full Revit Linked Model Support

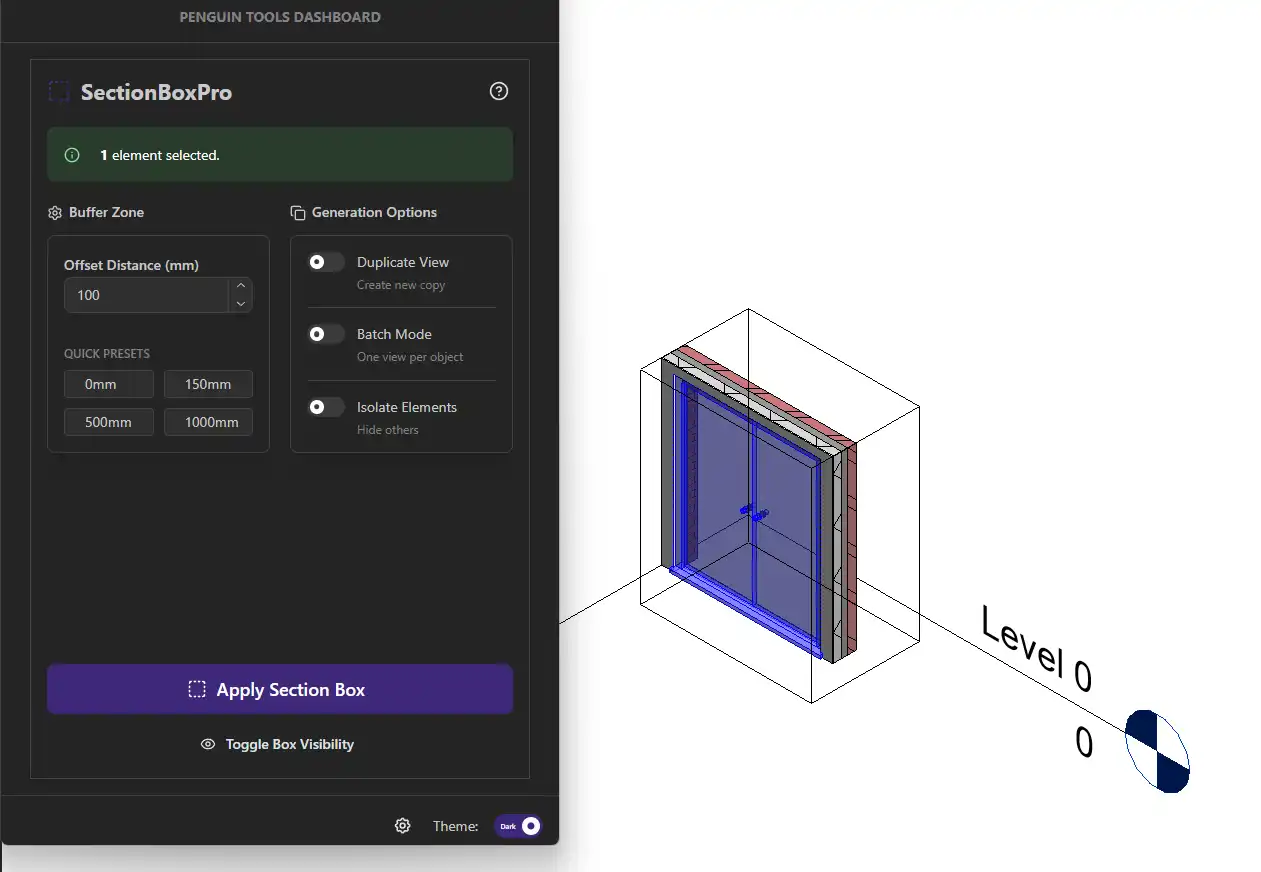

One of the standout features of Section Box Pro is its full support for Revit linked models. Users can easily pick walls, pipes, ducts, structural members, or equipment directly inside linked Revit models without having to tab blindly or open the link file. This seamless integration with linked models simplifies the process of isolating elements for detailed examination or documentation.

Section Box Pro also includes link-aware bounding boxes, which automatically transform linked element coordinates into host project coordinates. This ensures that the 3D section box accurately encompasses all linked items, providing a comprehensive view of the model and its components.

Summary

Overall, Section Box Pro is a valuable tool for Revit users looking to streamline their 3D section box workflow. With its advanced features, including multi-directional buffer control, instant presets, and full support for linked models, Section Box Pro offers a range of benefits for high-speed detailing, clash inspection, and multi-element documentation. For users seeking to enhance their productivity and efficiency in Revit, Section Box Pro is a plugin worth exploring.
