The Flange(DIN) Millimeter Family Pack is a powerful Revit plugin that offers a comprehensive set of metric families for DIN-standard flanges. This plugin is specifically designed for European and metric-based piping systems, providing accurate dimensions and parametric configurations for flexible and efficient design workflows.
(Image by: JFM)
Key Features

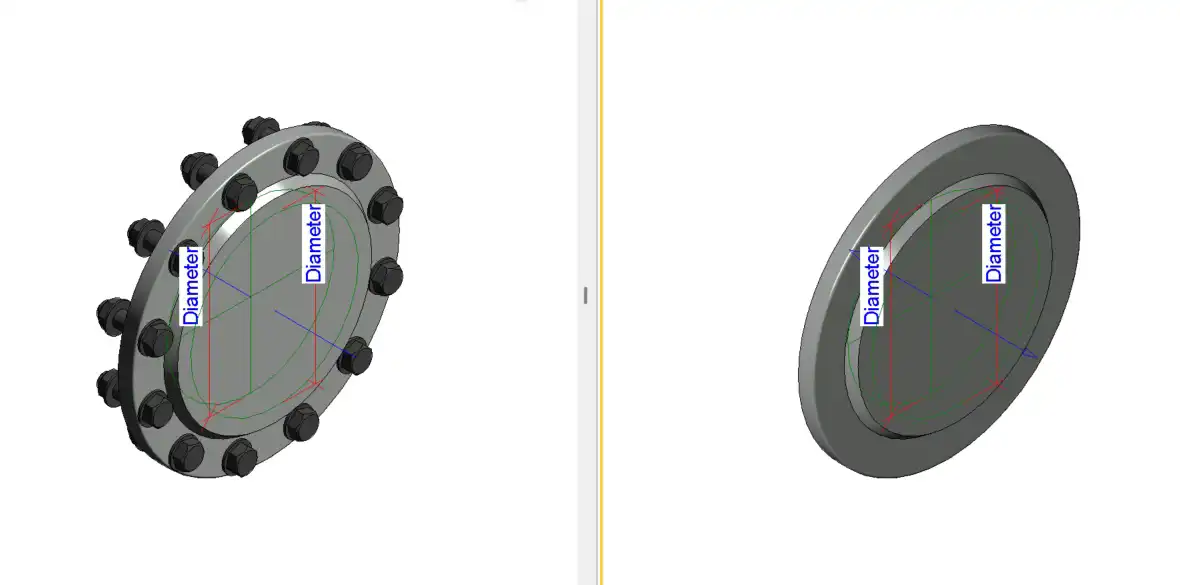

One of the standout features of the Flange(DIN) Millimeter Family Pack is its complete set of DIN standard flange types. Each family includes accurate metric dimensions and parametric controls, allowing for precise customization and seamless integration within your Revit projects. The bolt visibility ON/OFF functionality is particularly useful for simplifying the display of bolts in your models.
Furthermore, the lightweight geometry of the families ensures smooth project performance, making it easier to navigate and work with complex BIM environments. The plugin is fully compatible with Revit versions 2023–2026, ensuring that you can seamlessly incorporate these families into your current projects.
(Image by: JFM)
Efficiency and Reliability

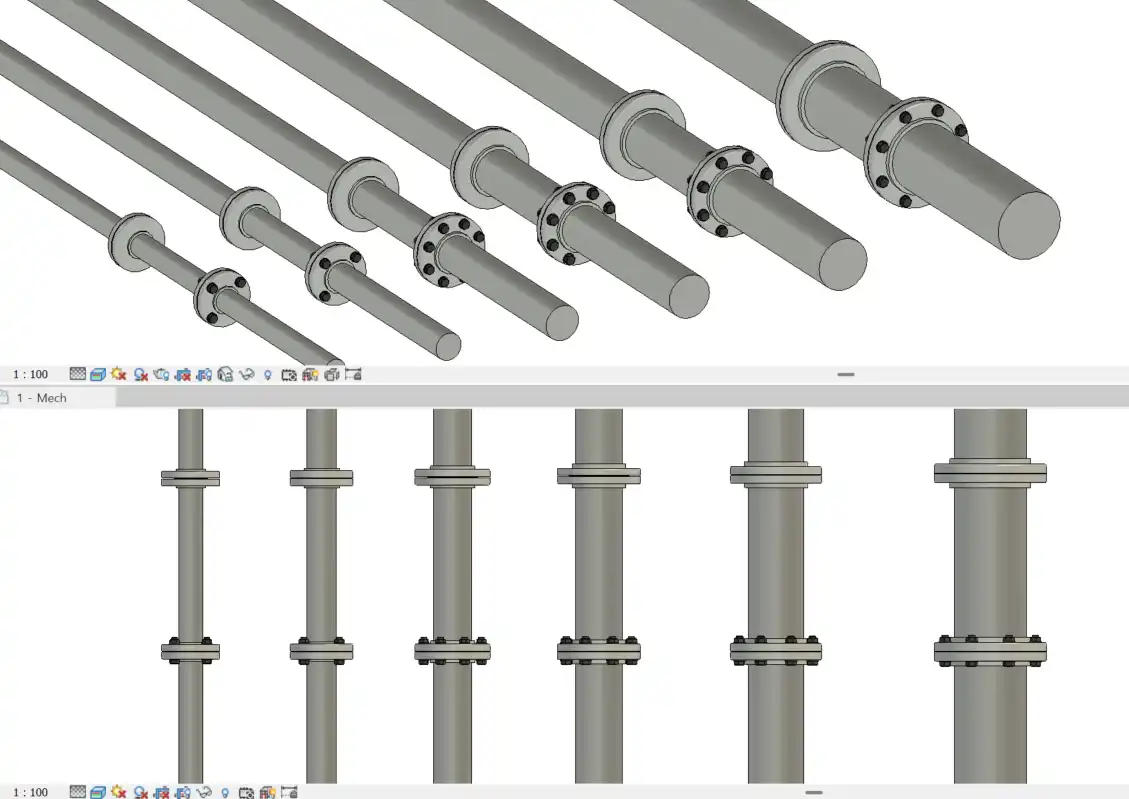

With the optimized geometry of the Flange(DIN) Millimeter Family Pack, users can rely on accurate clash detection and efficient coordination within their projects. The precise DIN dimensions and parametric configurations make it easier to identify and resolve clashes, ultimately saving time and improving project outcomes.
(Image by: JFM)
Conclusion
The Flange(DIN) Millimeter Family Pack is a valuable addition to any Revit user's toolkit, offering a complete set of DIN standard flanges with accurate metric dimensions and parametric controls. With its lightweight geometry and compatibility with Revit 2023–2026, this plugin streamlines the design process and enhances collaboration in BIM environments. Whether you are working on European or metric-based piping systems, the Flange(DIN) Millimeter Family Pack is a must-have plugin for efficient and reliable design workflows.
