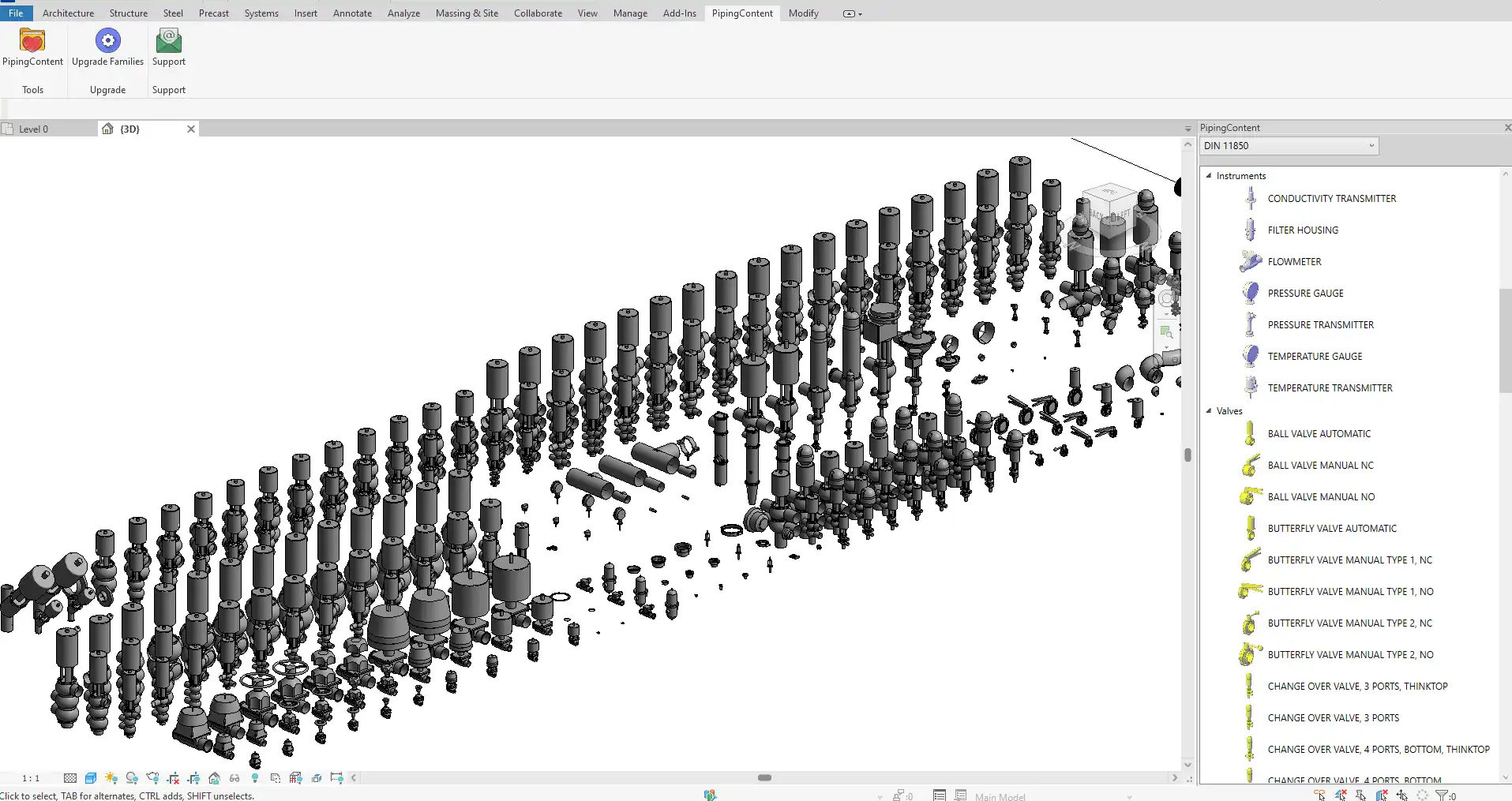

Designing process piping for industries such as food, beverage, dairy, pharma, and biotech can be a complex and time-consuming task. However, with the DIN 11850 (EN 10357) Parametric Families plugin for Autodesk Revit, this process has been streamlined and simplified. This plugin provides a ready-to-use library of hygienic components aligned to DIN 11850 Series 2 / EN 10357, making it easier than ever to design accurate and efficient piping systems within the Revit environment.

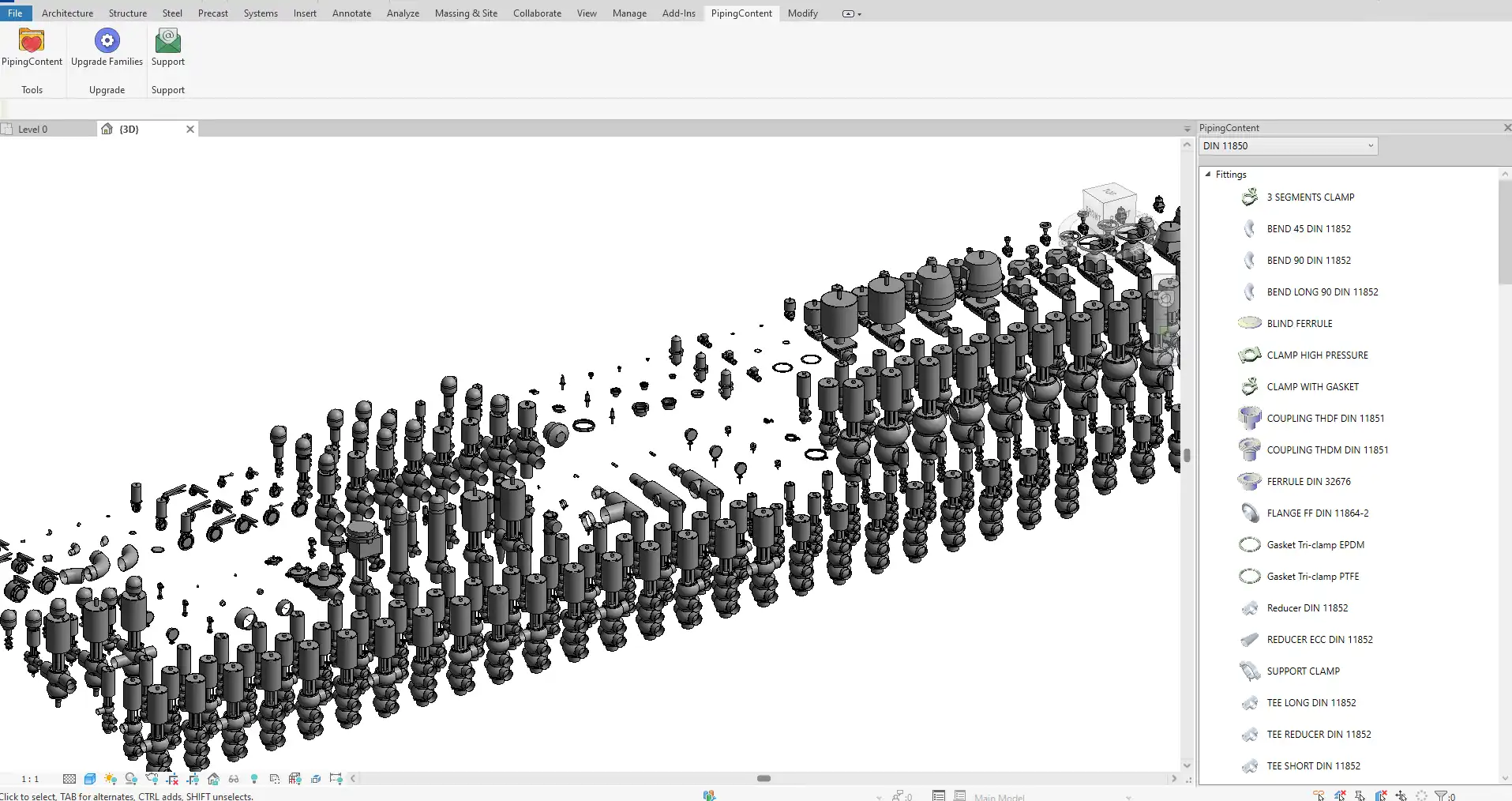

(Image by: Piping Content (RVT Families))
Features and Benefits
The DIN 11850 (EN 10357) Parametric Families plugin offers a wide range of features and benefits that make it a must-have tool for any Revit user working on hygienic piping projects. One of the key advantages of this plugin is its lightweight and parametric families, which allow for easy customization and adaptability to specific project requirements. Additionally, the families are built with correct MEP connectors, eliminating the need for manual cleanup and ensuring accurate routing and tagging within the model.
The plugin also includes a comprehensive library of standard pipe sizes (OD 13, 19, 23, 29, 35, 41, 53, 70, 85, 104, 129, 154, 204 mm) and DN coverage (DN10–DN200), as well as a variety of connection types such as Tri-Clamp (DIN 32676), DIN 11851 threaded unions, ferrules, weld ends, and flanges. This extensive range of components allows users to design piping systems that meet industry standards and specifications with ease.

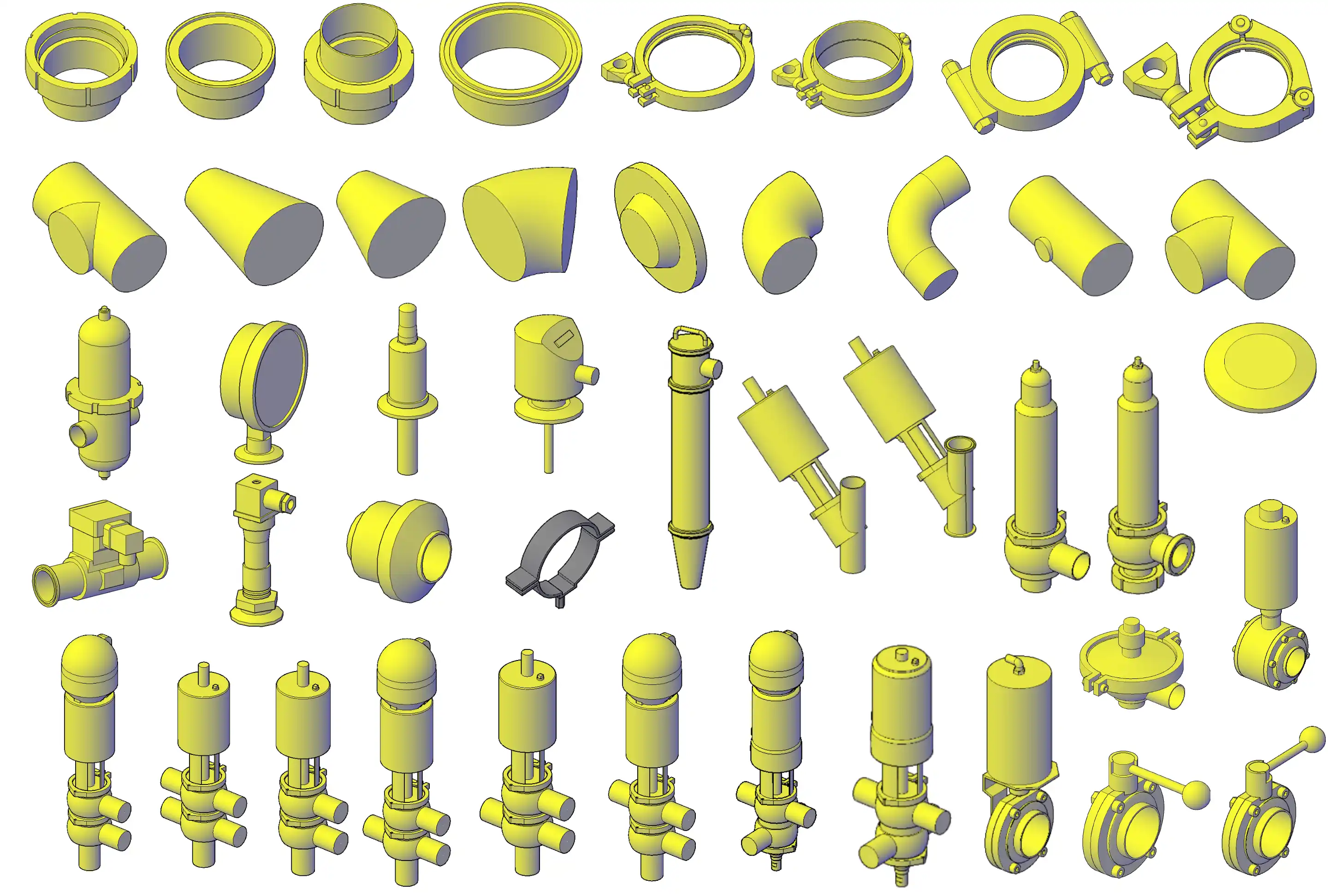

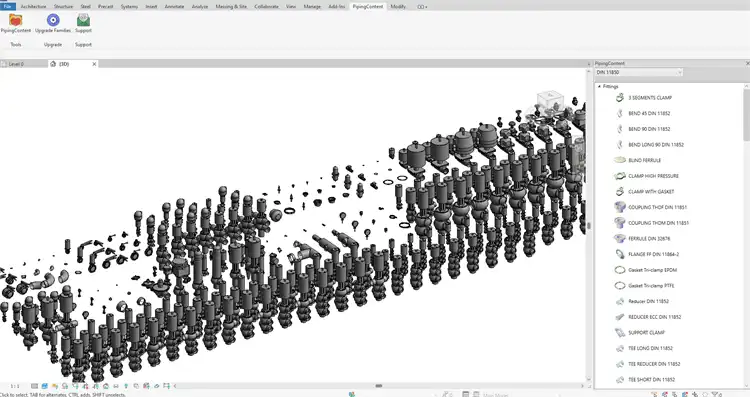

Family categories available in the plugin include elbows (45°, 90°, long-radius per DIN 11852), tees (straight, reducer, short/long per DIN 11852), reducers (concentric/eccentric per DIN 11852), caps & ends (blind ferrules, end caps), clamps (Tri-Clamp, high-pressure, 3-segment clamps), and couplings & ferrules (DIN 11851 THDF/THDM, DIN 32676 ferrules). This diverse selection of components ensures that users have everything they need to design complex piping systems efficiently and accurately.

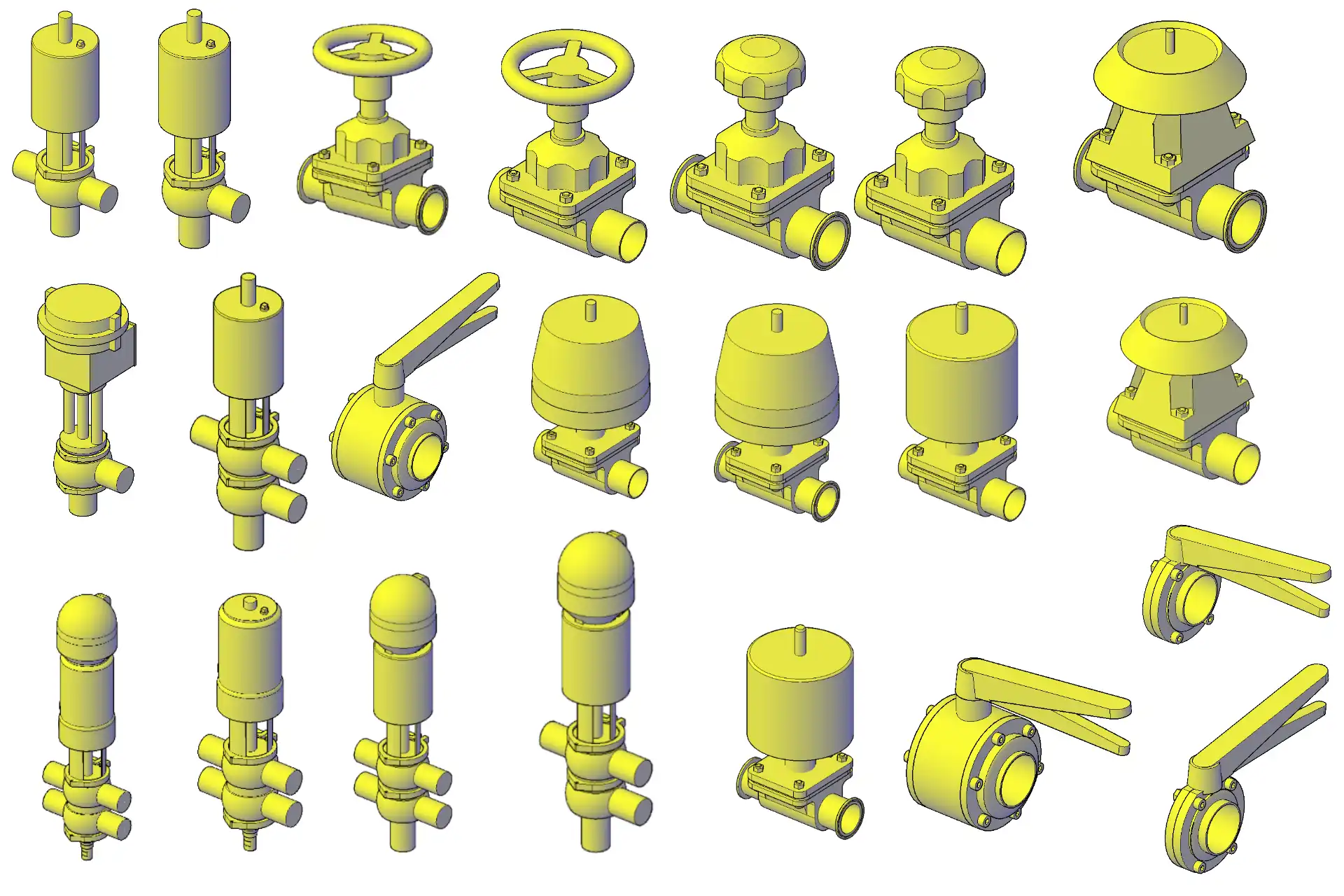

(Image by: Piping Content (RVT Families))
Ease of Use and Efficiency

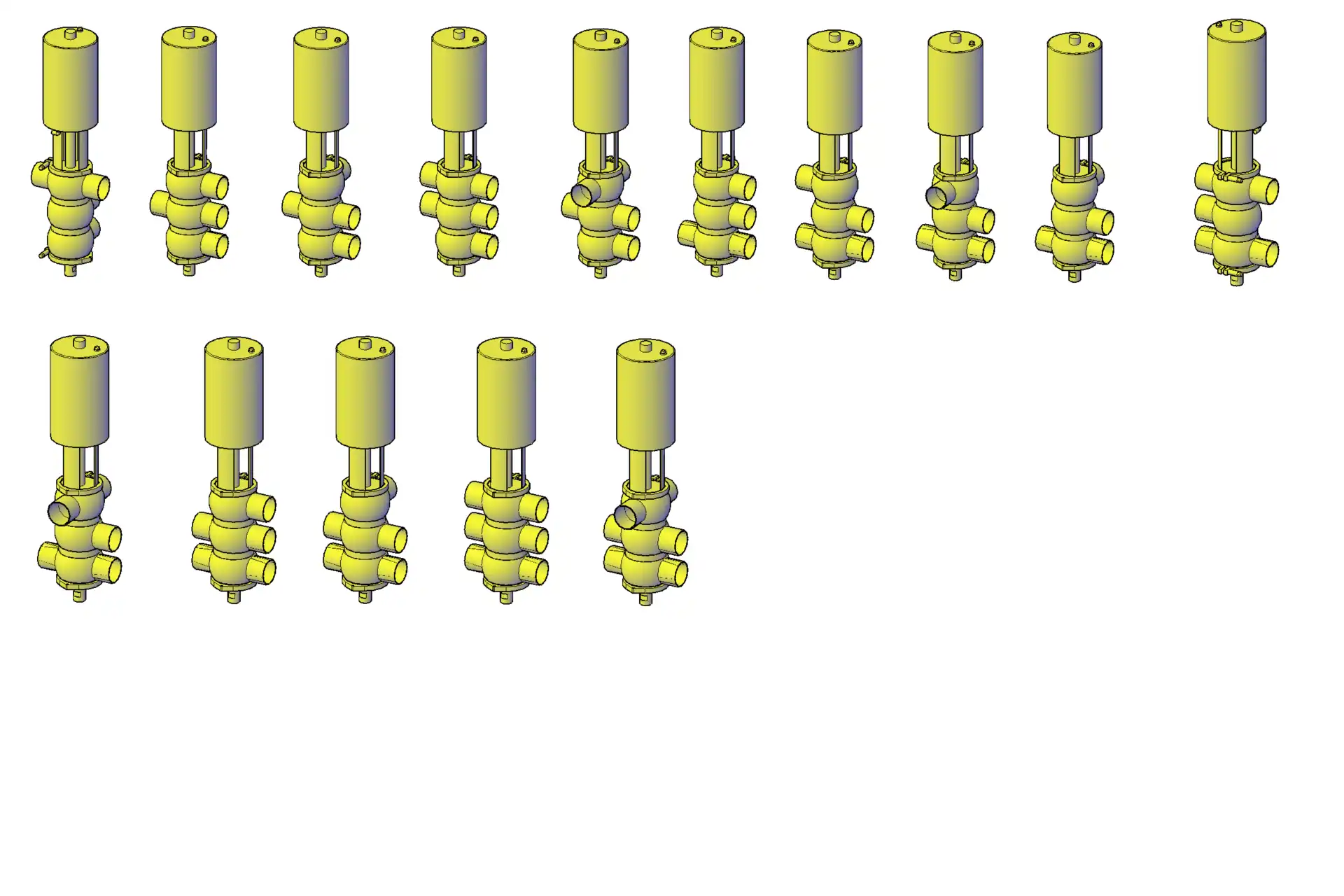

One of the standout features of the DIN 11850 (EN 10357) Parametric Families plugin is its user-friendly interface and intuitive design. The lightweight families and MEP connectors make it easy to drag and drop components into the model, while the parametric capabilities allow for quick adjustments and modifications as needed. This level of flexibility and ease of use not only saves time but also enhances the overall efficiency of the design process.

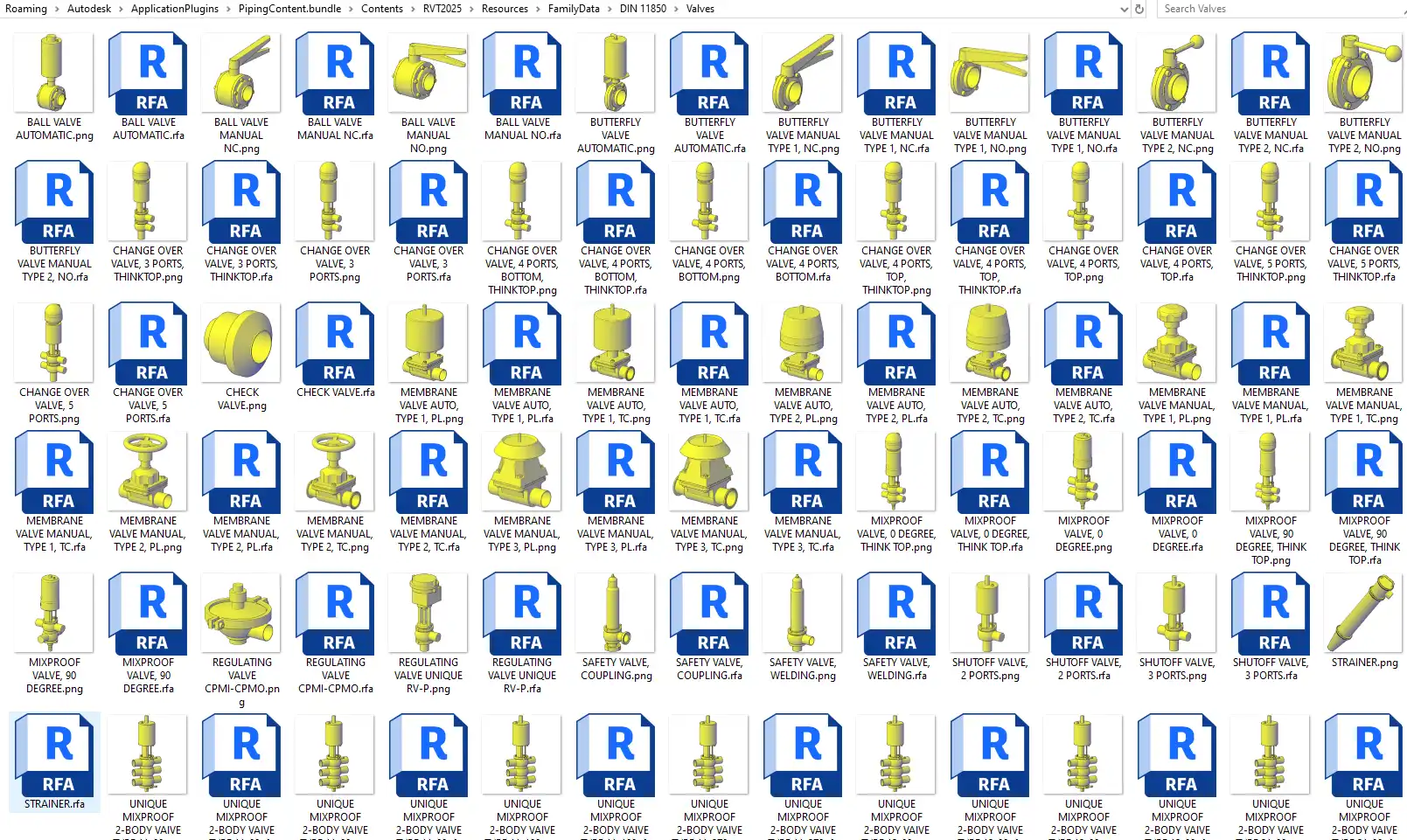

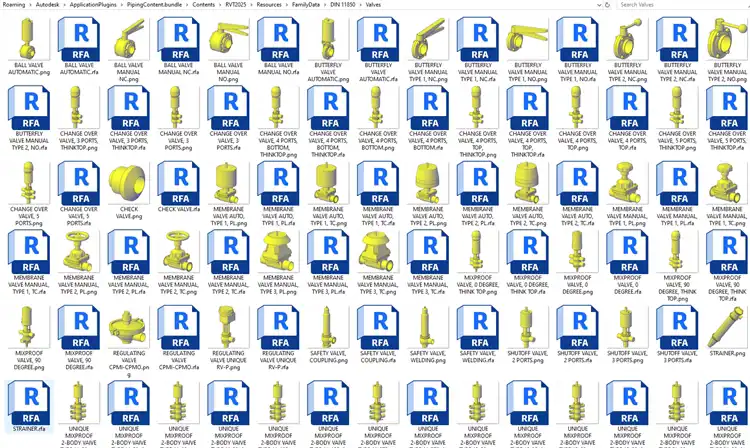

(Image by: Piping Content (RVT Families))
Summary
The DIN 11850 (EN 10357) Parametric Families plugin for Autodesk Revit is a game-changer for anyone working on hygienic piping projects. With its extensive library of components, lightweight parametric families, and built-in MEP connectors, this plugin simplifies the design process and ensures accurate and efficient piping systems. Whether you are designing piping for food, beverage, dairy, pharma, or biotech industries, this plugin is a valuable tool that can help you achieve your project goals with ease. Give it a try and experience the benefits for yourself!

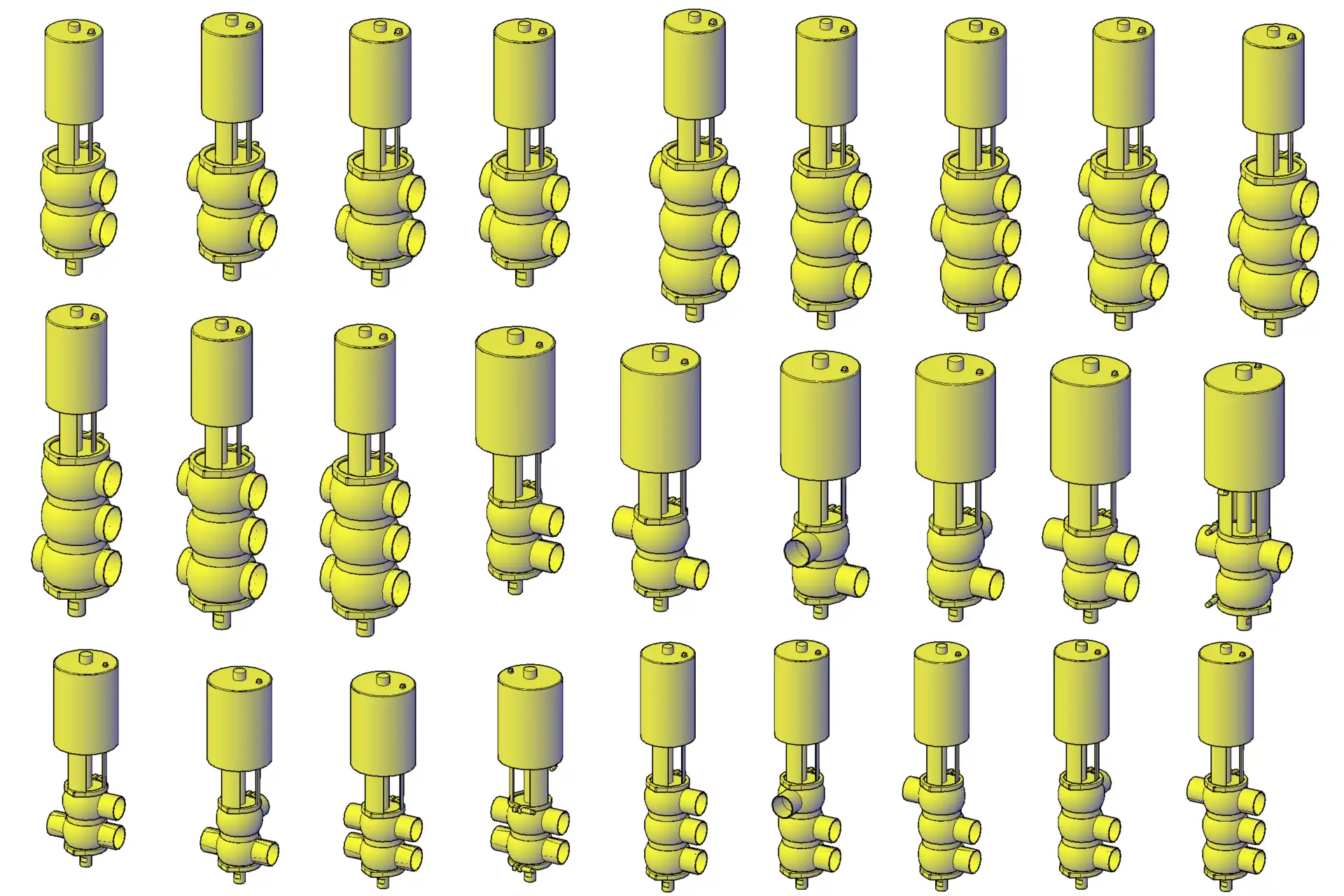

(Image by: Piping Content (RVT Families))

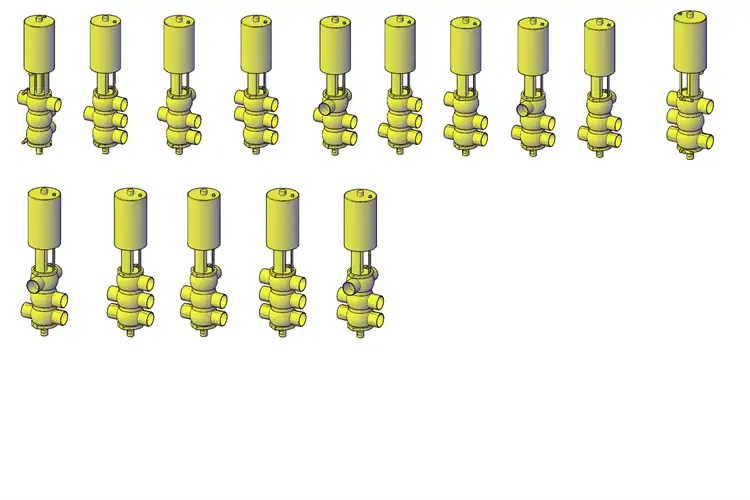

(Image by: Piping Content (RVT Families))
(Image by: Piping Content (RVT Families))

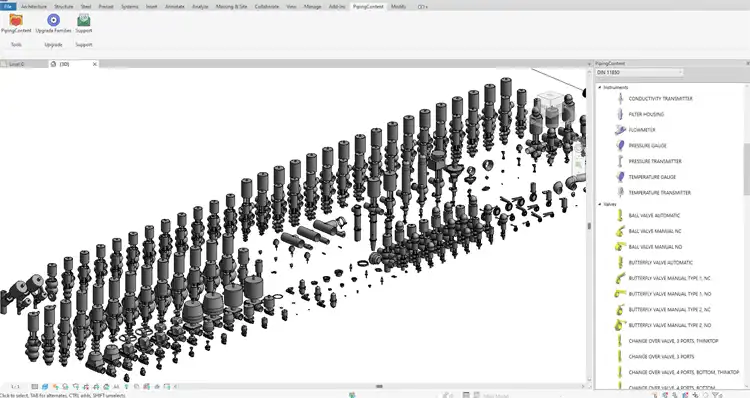

(Image by: Piping Content (RVT Families))
