The Butterfly Valve (Gear Type) – Inch Version is a must-have Autodesk® Revit® plugin for engineers, designers, and BIM professionals who are looking to streamline their piping system modeling process. This comprehensive family file offers a range of gear-operated butterfly valve types in inch units, providing users with accurate geometry, parametric flexibility, and essential configuration options.
(Image by: JFM)
Key Features

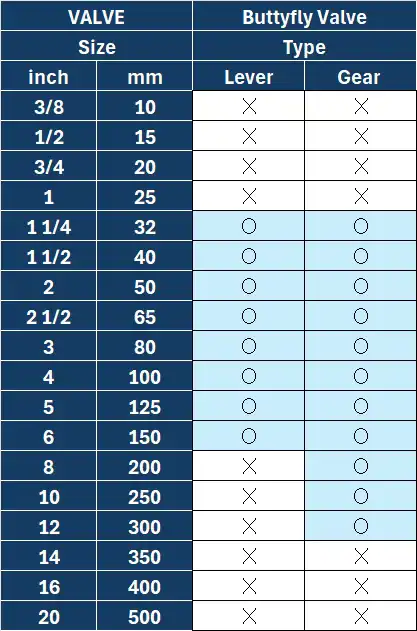

One of the standout features of the Butterfly Valve (Gear Type) Inch Family File is its support for various valve sizes commonly used in industrial piping systems. This ensures that users have the flexibility to work with different specifications and requirements in their projects.
Additionally, the ability to control the gear body, handle orientation, and bolt visibility via parameters offers a high level of customization, allowing users to fine-tune the valves to suit their specific needs.
Furthermore, the optimized geometry of the valve families enhances project performance by facilitating clash detection, lightweight performance, and smooth coordination in large-scale BIM projects. This ensures that users can work efficiently without compromising on accuracy or quality.
(Image by: JFM)
Compatibility and Installation
The Butterfly Valve (Gear Type) Inch Family File is fully compatible with Revit versions 2023 to 2026, making it a versatile tool for users across different software versions. However, it is important to note that this plugin uses a custom installer, rather than the standard App Store installer.
(Image by: JFM)
Conclusion
The Butterfly Valve (Gear Type) Inch Family File is a valuable addition to any engineer, designer, or BIM professional's toolkit. With its comprehensive features, optimized geometry, and compatibility with a range of Revit versions, this plugin offers a seamless and efficient solution for modeling piping systems in large-scale BIM projects. I highly recommend giving it a try to experience the benefits firsthand.
